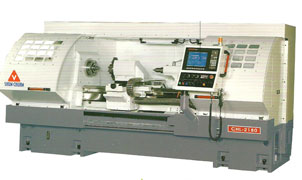

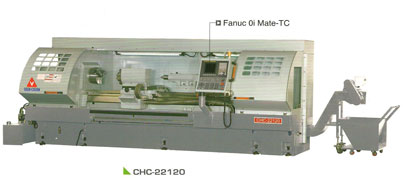

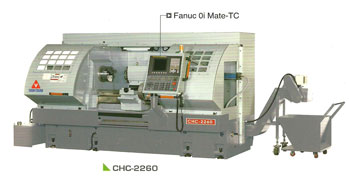

CNC Lathes - Sun Master

Hebron Partnering with Sun Master high technology CNC Lathe manufacturer. The linear guide way applies a one piece axis slant bed structure with thick iron ribs, it presents overall stability, rigidity, and lower vibration during heavy duty machining.

High class Meehanite casting is annealed and stress relieved. X & Z slideways are hardened & ground; high quality TURCITE-B coated on the slideways with precise scrapping assures machine's accuracy and long lasting life. Standard rapid 24 m/min travel, faster rapid traverse with no cutting time reduction result in the most efficient match.

Machine structure design adopts FEM technology to create a superior rigid and accuracy during high speed operation.

30° slant bed design provides best stability, vibration absorb capability and smooth chip collection.

Both X and Z axis equipped with pre-tensioned C3 class high precision ballscrew Ø32 x Ø40 mm to ensure machine position accuracy during operation.

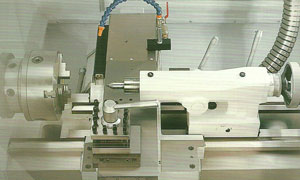

Standard with 12 tools servo motor turret (8 or 10 station turret by option), which offers very short station changing time without vibration. Tool change is fast accomplished in only 0.44 seconds (adjacent tool) and 0.8 seconds (without adjacent tool).

Italian-made Cs axis and VDI tooling turret contribute to high precision contour cutting, and reach the goal of highly complex for multi-purpose.
